Hydraulic pumps > Hand pump PMM/PMB

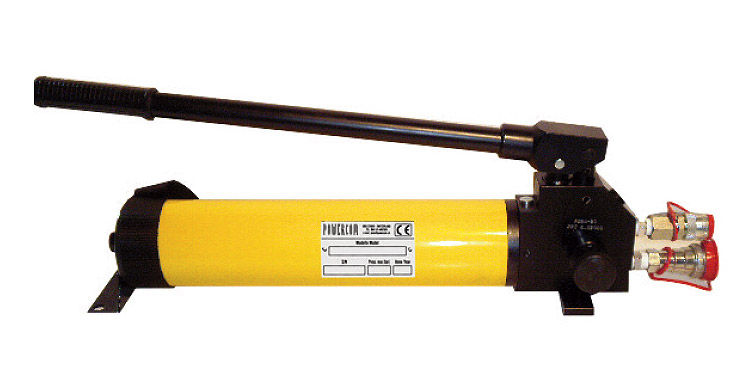

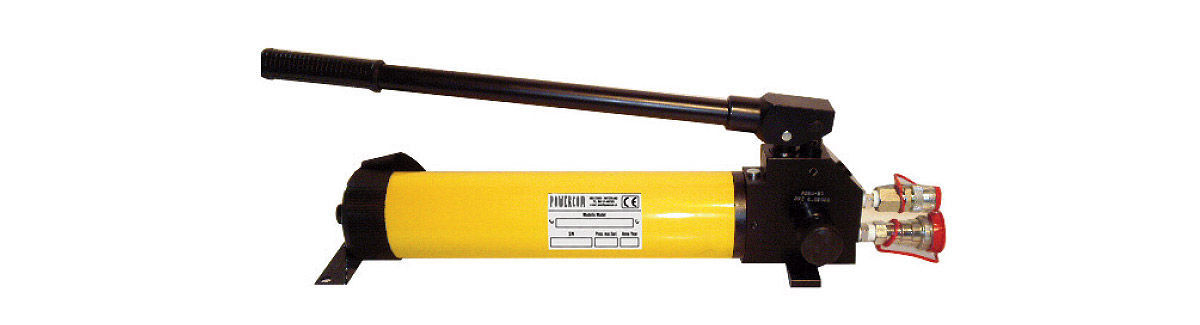

Hand pump PMM/PMB


PMM - Single pipe

Two-stage hand pump with safety valve, pressure gauge and quick release compling. Suitable for IR P 55 single pipe.

PMB - Dual pipe

Two-stage hand pump with safety valve and quick release couplings. Suitable for presses IR P 55/60, IR P 65, IR P 100, IR P 110 and IR P 160/200.

Specifications

Max oil pressure 700 bar
Oil delivery volume per pumping 1st stage 16,28 cm3
2nd stage 2,46 cm3
Oil tank capacity 2,2 l
Weight 9,5 kg
Case 70x35x25 cm
