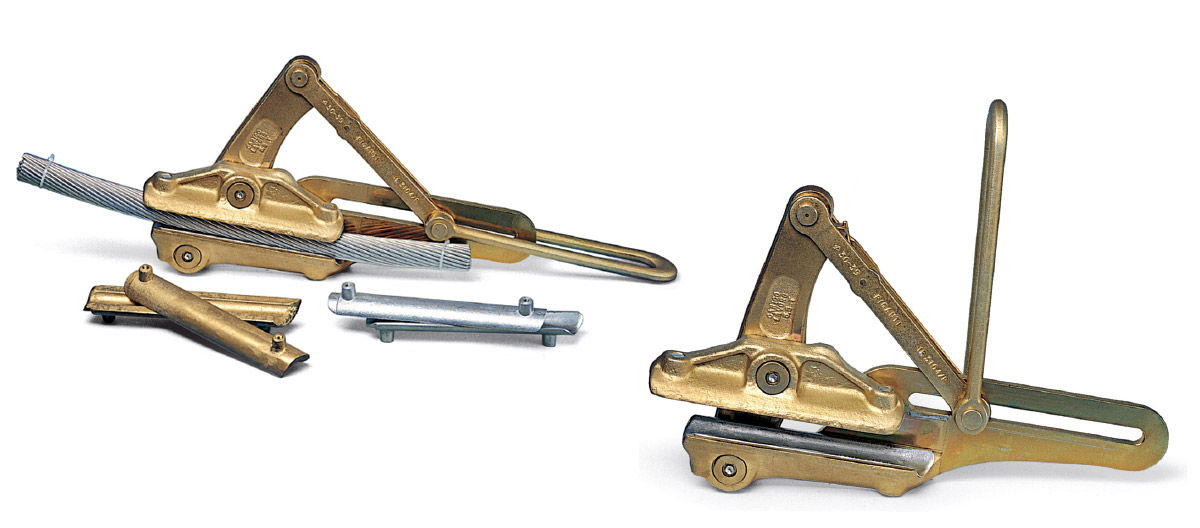

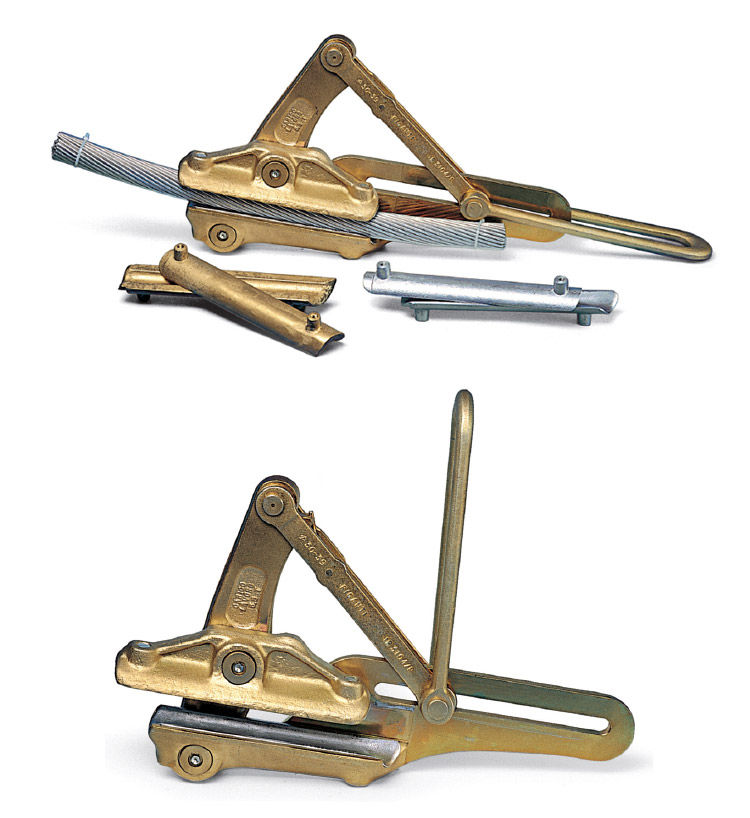

Self-gripping clamp IR 3104 - S

Automatic self-gripping clamp

Suitable for aluminium, A.C.S.R., steel earthwire, antitwisting rope and copper conductors. Made of high tensile alloy steel, hot forged, heat-treated, precision machined and zinc-plated with a complete range of interchangeable liners.

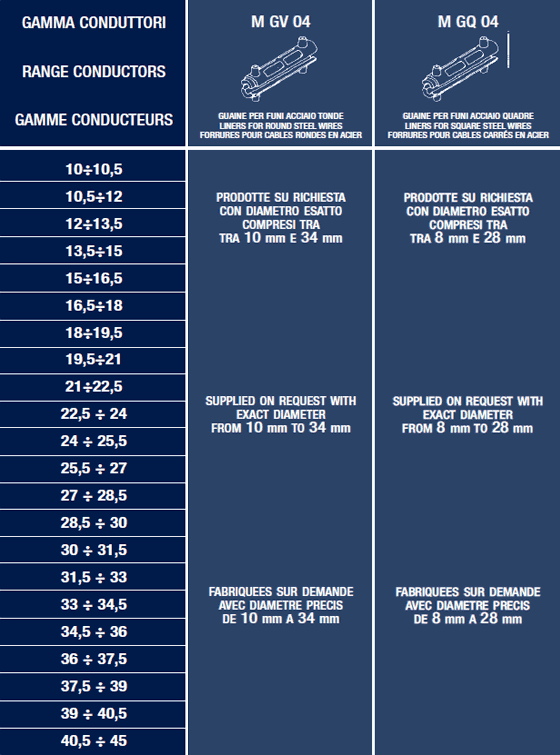

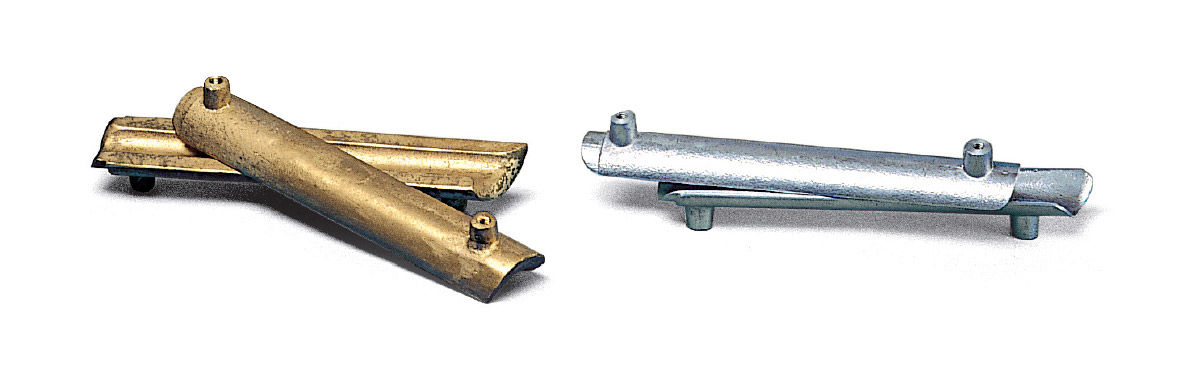

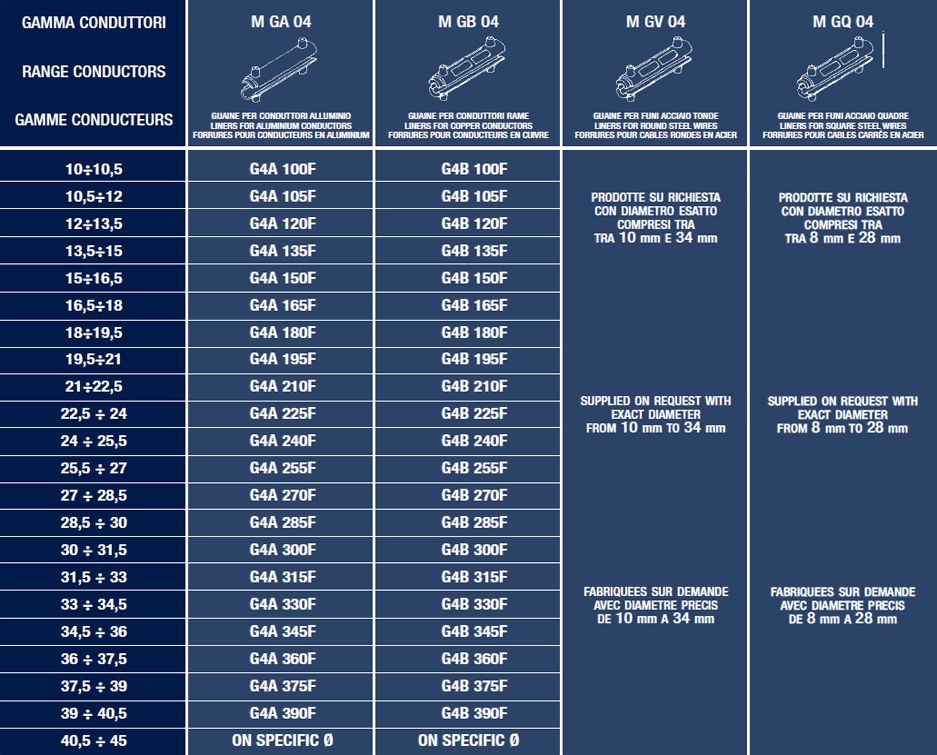

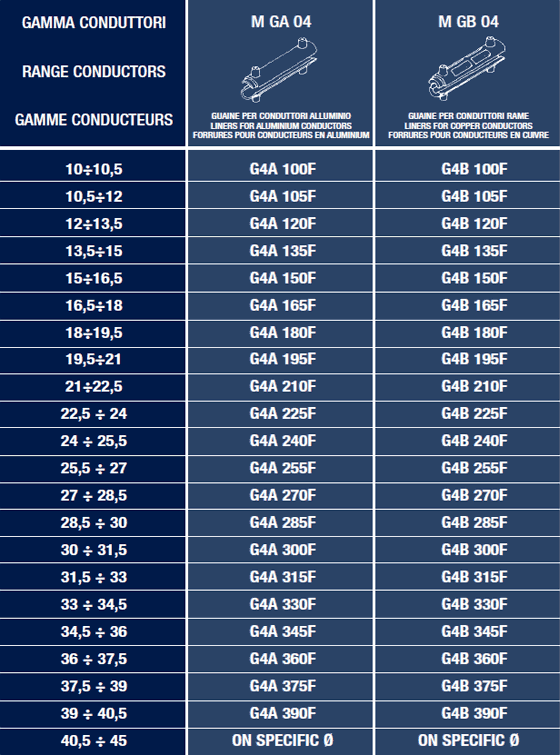

The liners are available in aluminium for aluminium or aluminium/steel conductors and bronze for copper conductors, steel antitwisting rope and steel earth wire from Ø 10 mm to 45 mm.

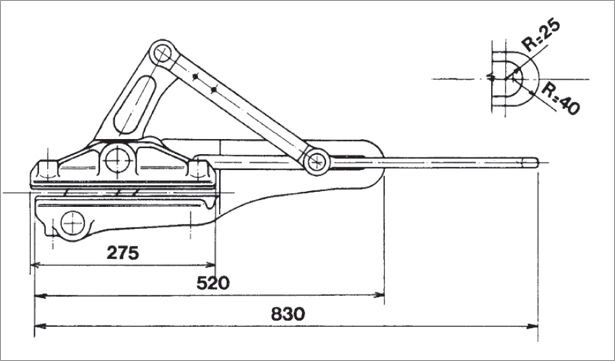

Specifications
