Self-gripping clamps > IR 3106

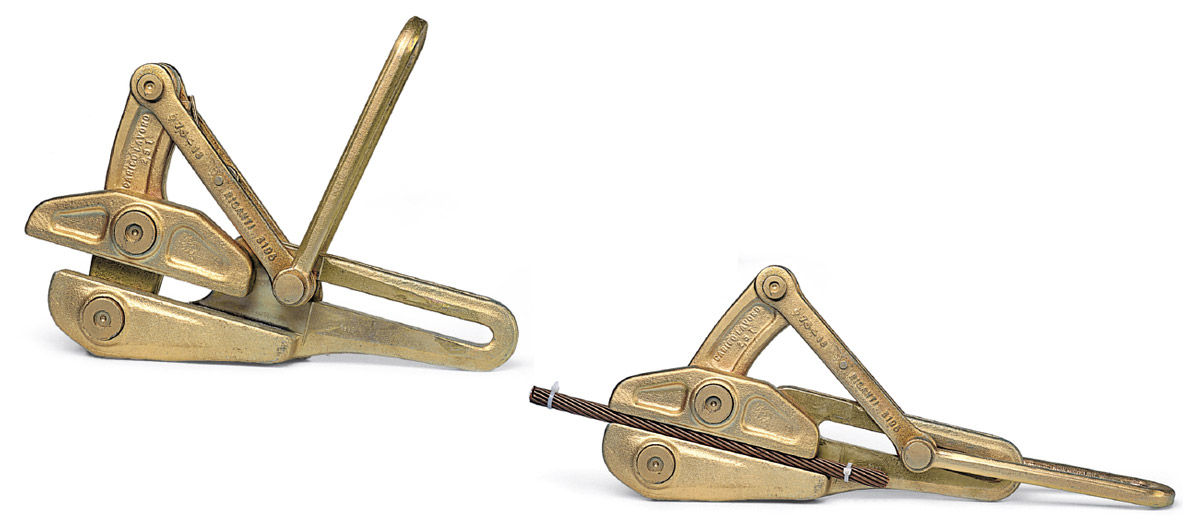

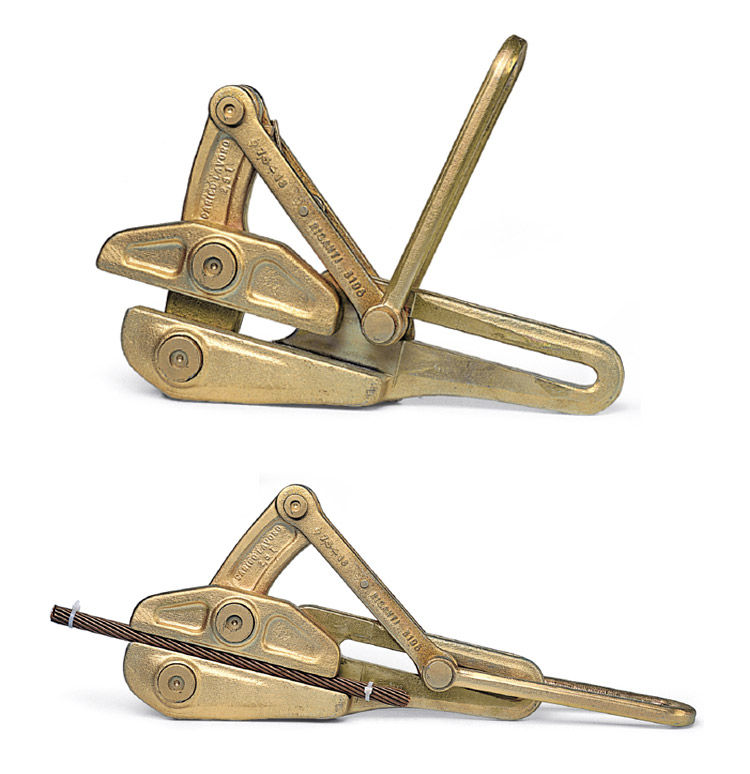

Self-gripping clamp IR 3106


Automatic self-gripping clamp

Suitable for steel earth wire, antitwisting rope and copper conductor from 7,5 mm to 18 mm. Made of high tensile alloy steel, hot forged, heat-treated, precision machined and zinc-plated.

Specifications

Maximum safety load 50 kN
Minimum breaking load 125 kN
Weight 7 kg
Self-gripping clamp IR 3106 Self-gripping clamp IR 3106
