Self-gripping clamps > IR 3111

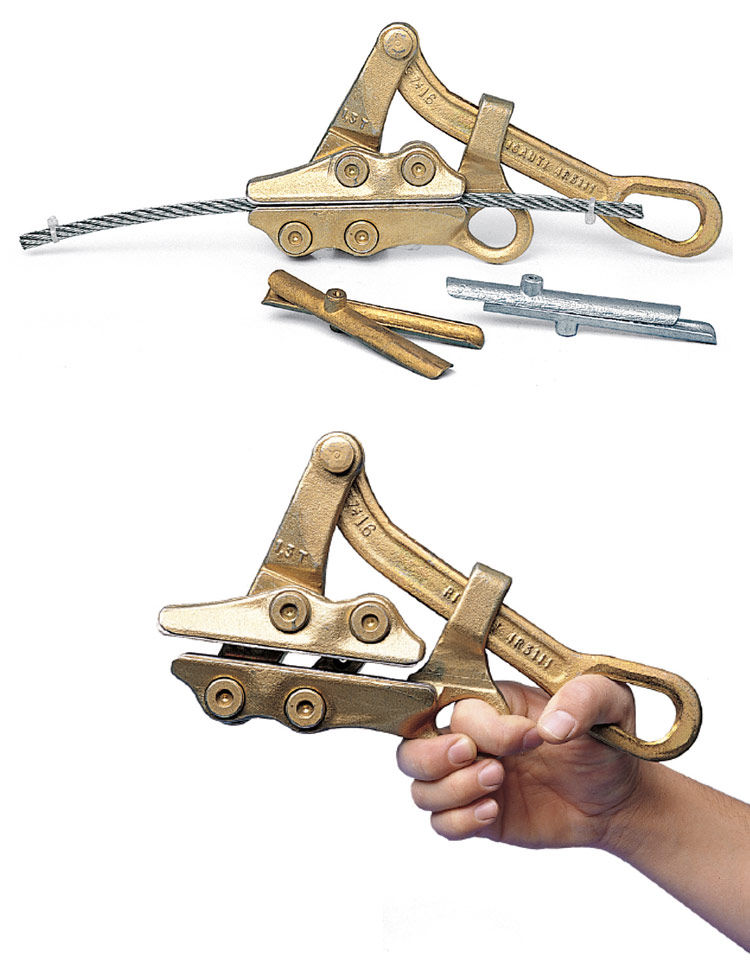

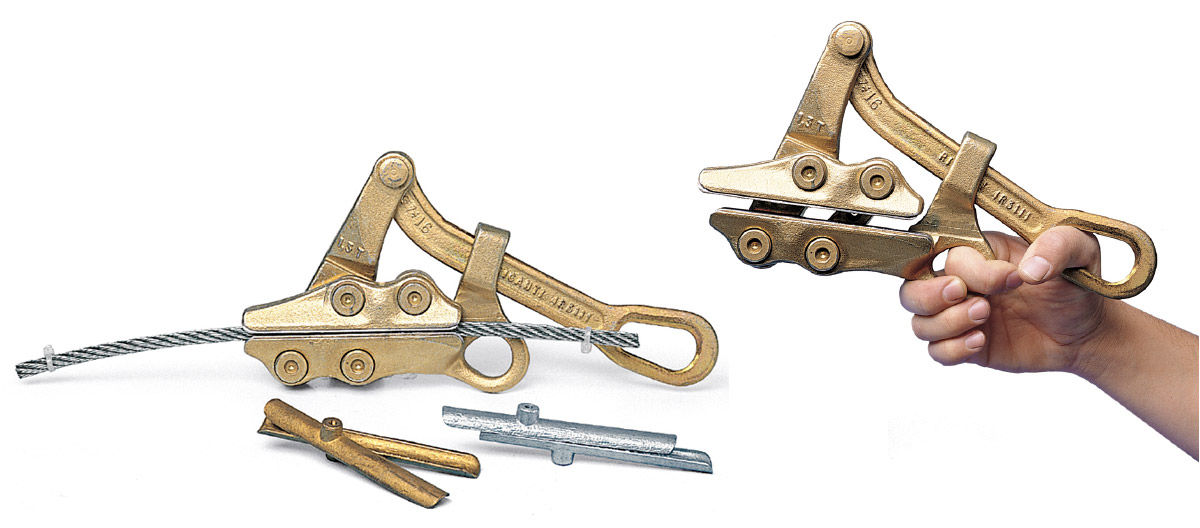

Self-gripping clamp IR 3111
Automatic self-gripping clamp
Self gripping clamp with changeable liners suitable for gripping aluminium, aluminium-steel, copper conductors and steel wires from 7 mm to 16 mm.
This clamp is made of high tensile alloy steel, hot forged, heat-treated, precision machined and cadmium plated.
Specifications
Maximum safety load | 21,2 kN |
Minimum breaking load | 64 kN |
Weight | 2,5 kg |

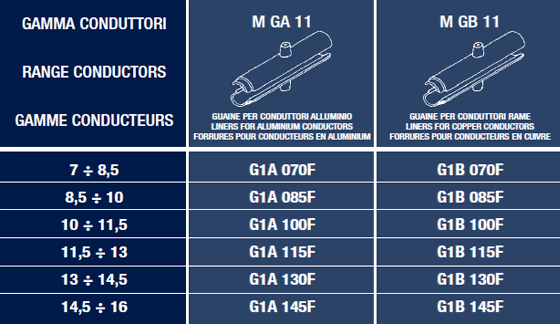

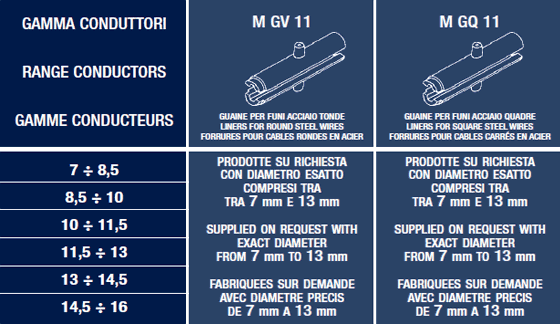

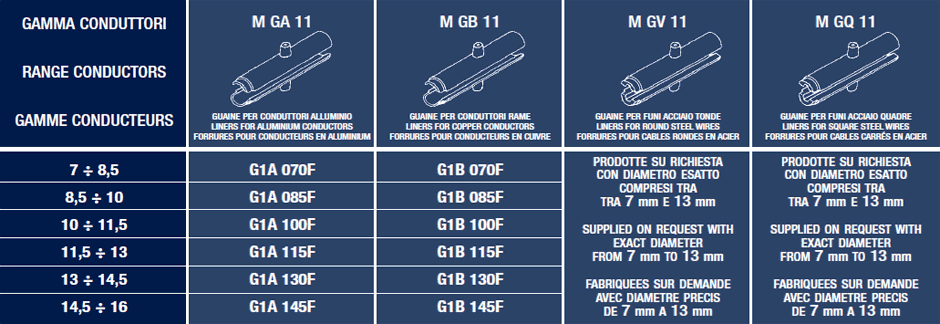

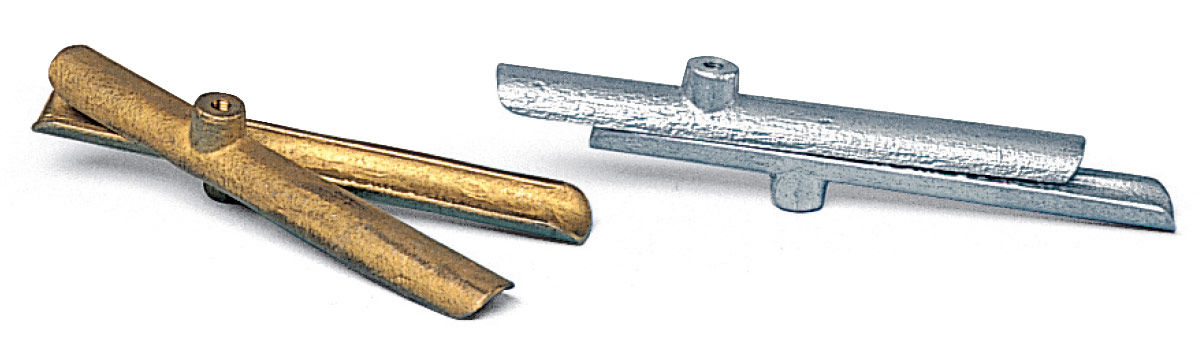

Interchangeable liners

The liners are available in aluminium for aluminium or aluminium/steel conductors and bronze for copper conductors, steel antitwisting rope and steel earth wire. Special liners for PVC covered conductors are available on demand.
