Self-gripping clamps > IR 3108

Self-gripping clamp IR 3108


Self-gripping clamp

Self-gripping clamp suitable for lifting conductors in suspension. Suitable for aluminium, A.C.S.R. from 7 mm to 38 mm. Made of high tensile alloy steel, hot forged, heat-treated, precision machined and zinc-plated with a complete range of interchangeable liners. The liners are available in aluminium for aluminium or aluminium/steel conductors.

Specifications

Maximum safety load 39,2 kN
Minimum breaking load 110 kN
Weight 5,5 kg

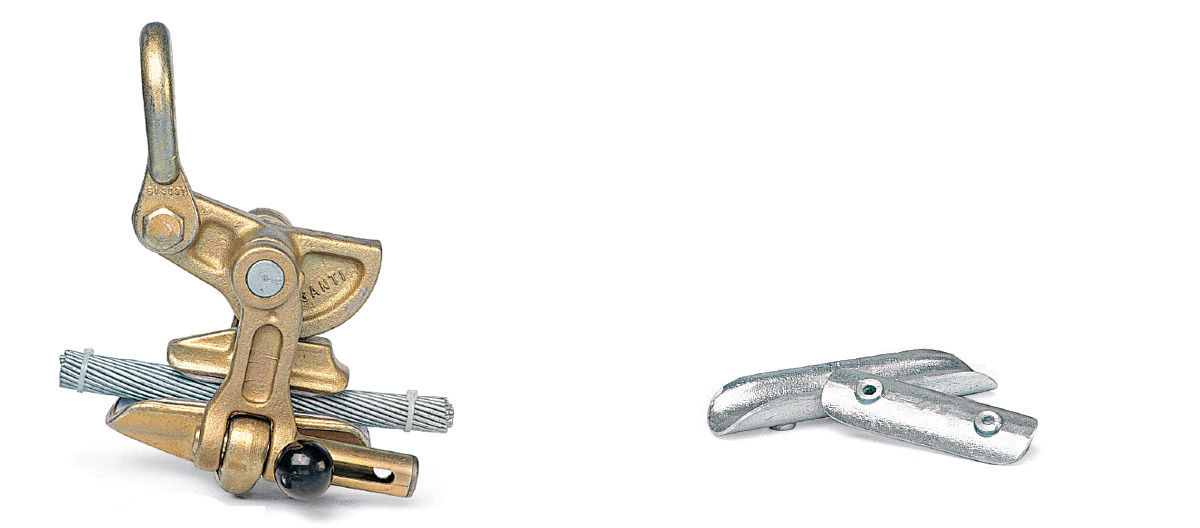

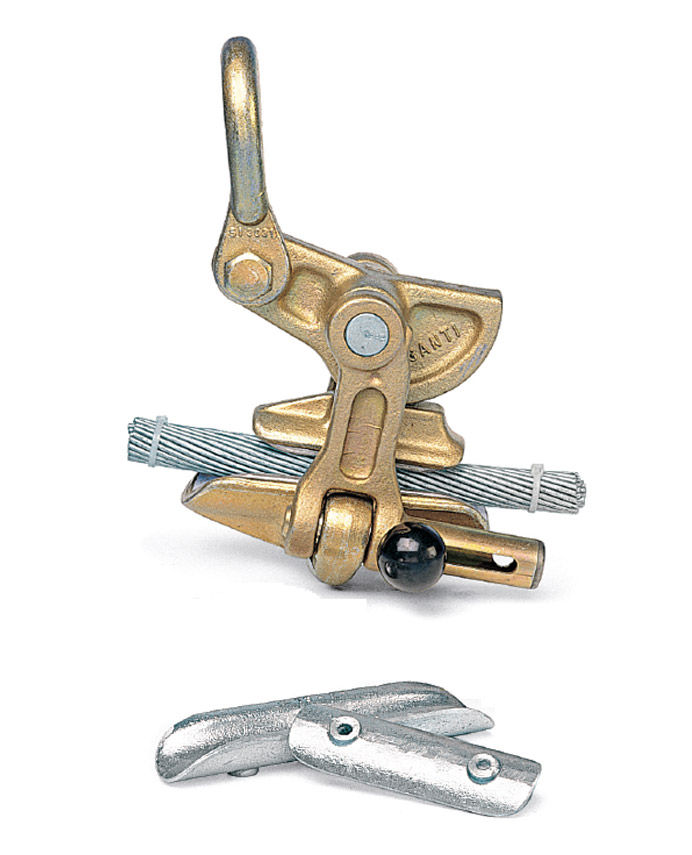

Self-gripping clamp IR 3108 Self-gripping clamp IR 3108

Interchangeable liners

The liners are available in aluminium for aluminium or aluminium/steel conductors.

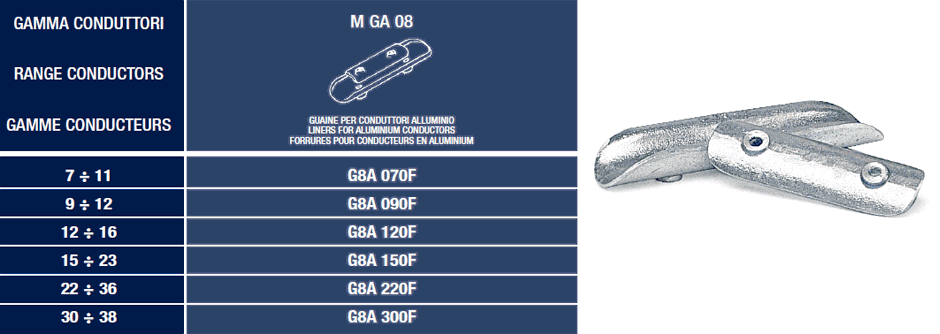

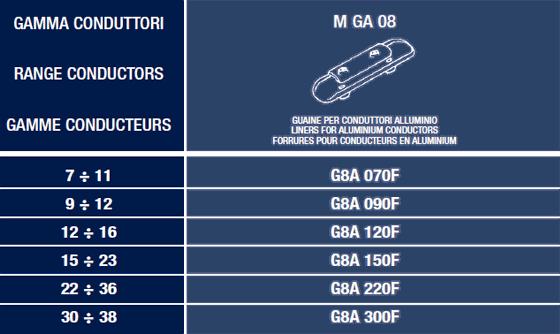

IR 3108 liners IR 3108 liners

Use

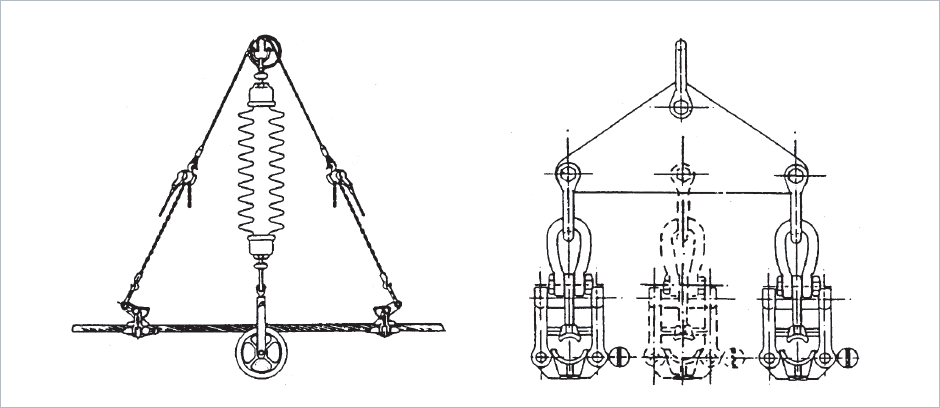

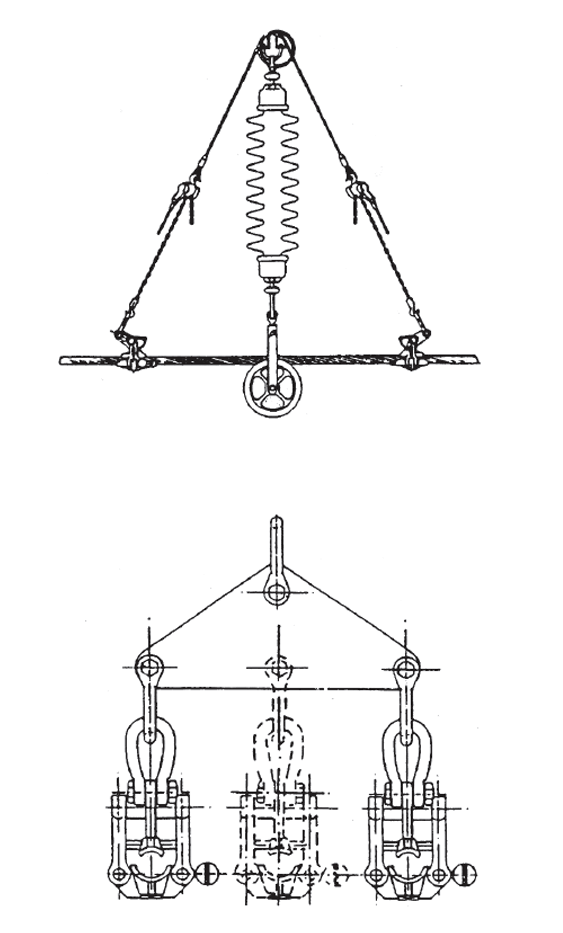

IR 3108 usage IR 3108 usage
