Self-gripping clamps > IR 3112

Self-gripping clamp IR 3112 for OPGW


Automatic self-gripping clamp

Suitable for OPGW conductors outer Ø 6-23 mm. Made of high tensile alloy steel, hot forged, heat-treated, precision machined and zinc-plated with a complete range of interchangeable liners.

Specifications

Maximum safety load 49 kN
Minimum breaking load 180 kN
Weight 7 kg

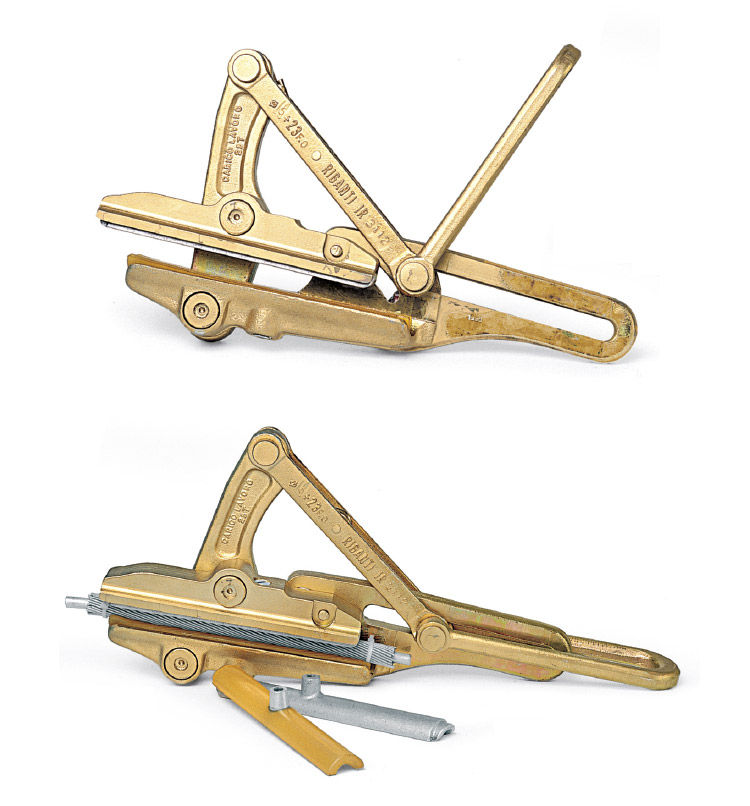

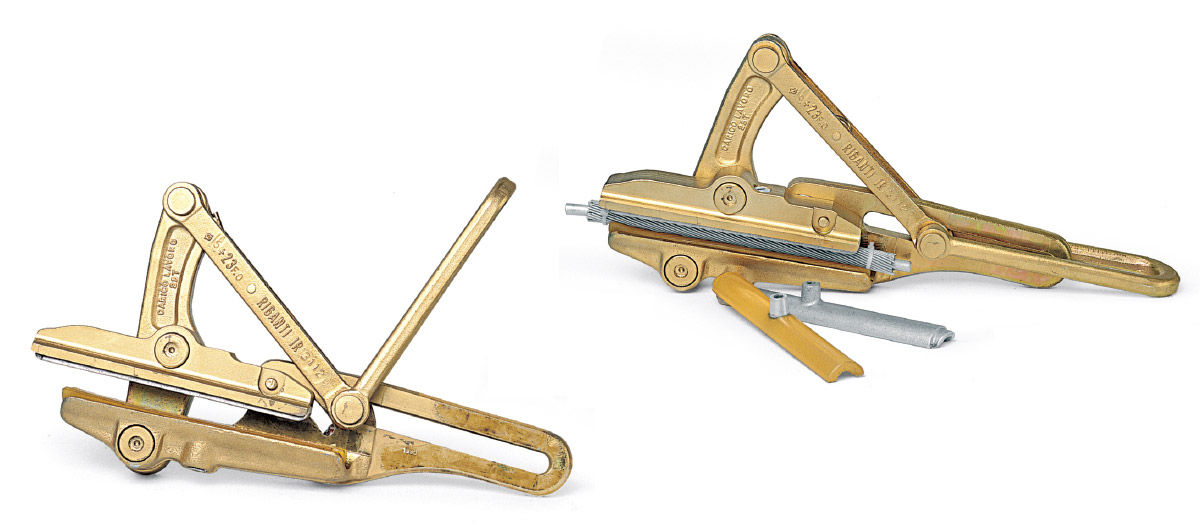

Self-gripping clamp IR 3112 Self-gripping clamp IR 3112

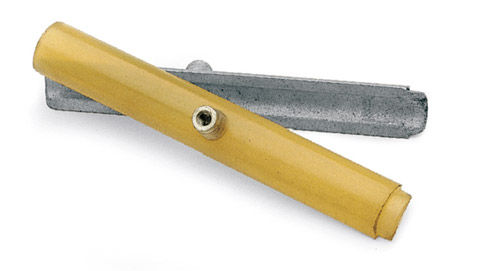

Interchangeable liners

IR 3112 liners

The lower liner is made of Adiprene whereas the upper one is made of aluminium. You need suitable liners for each conductor diameter.
