Self-gripping clamp IR 3105 - S


Automatic self-gripping clamp

Suitable for aluminium, A.C.S.R., steel earthwire, antitwisting rope and copper conductors. Made of high tensile alloy steel, hot forged, heat-treated, precision machined and zinc-plated with a complete range of interchangeable liners.

The liners are available in aluminium for aluminium or aluminium/steel conductors and bronze for copper conductors, steel antitwisting rope and steel earth wire from 8 mm to 35,2 mm.

Specifications

Maximum safety load 88 kN
Minimum breaking load 275 kN
Weight 13,5 kg

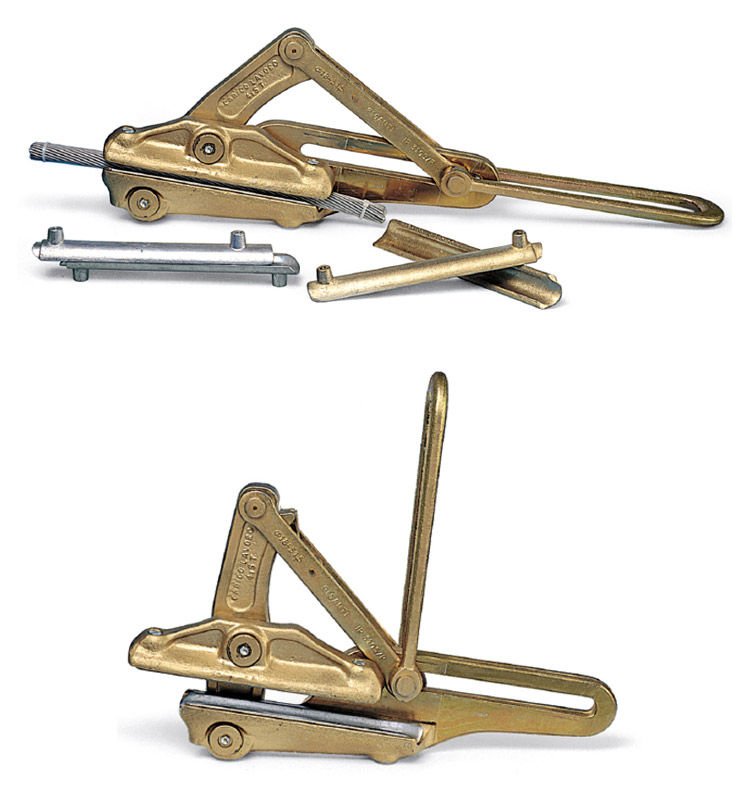

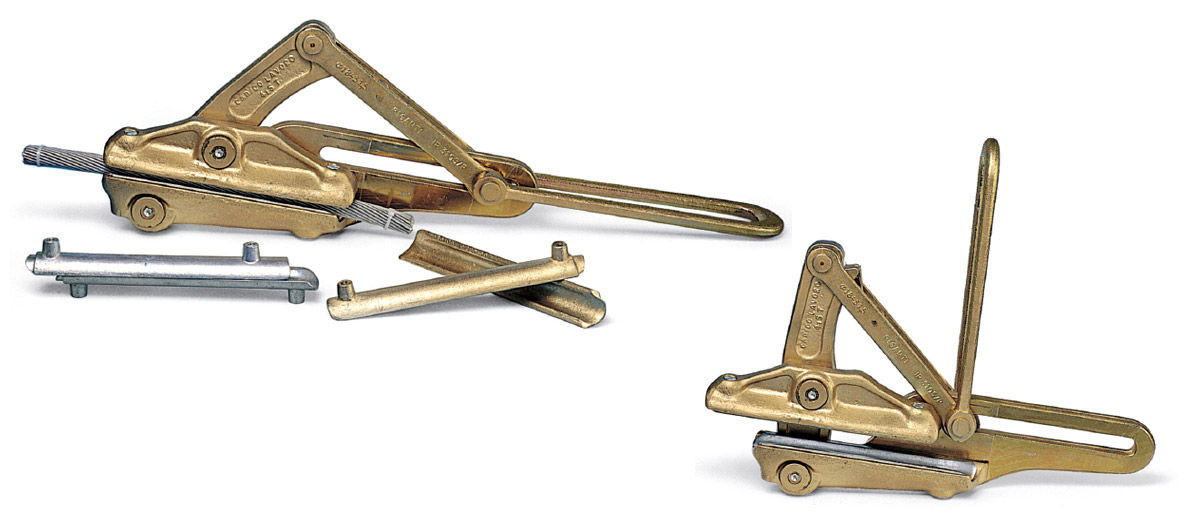

Self-gripping clamp IR 3105 - S Self-gripping clamp IR 3105 - S

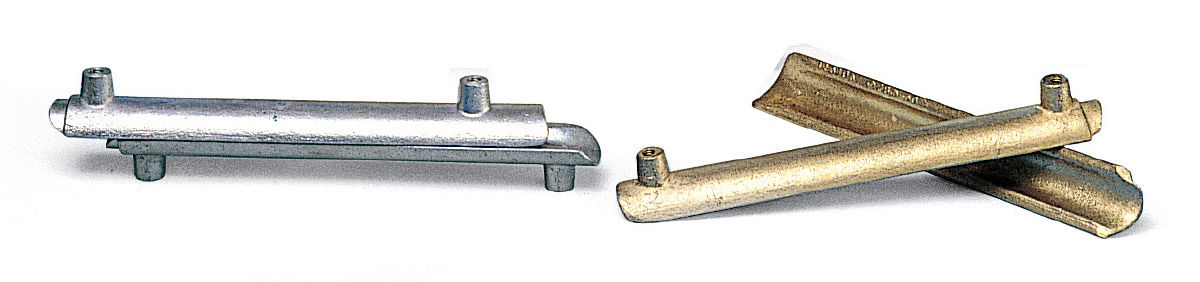

Interchangeable liners

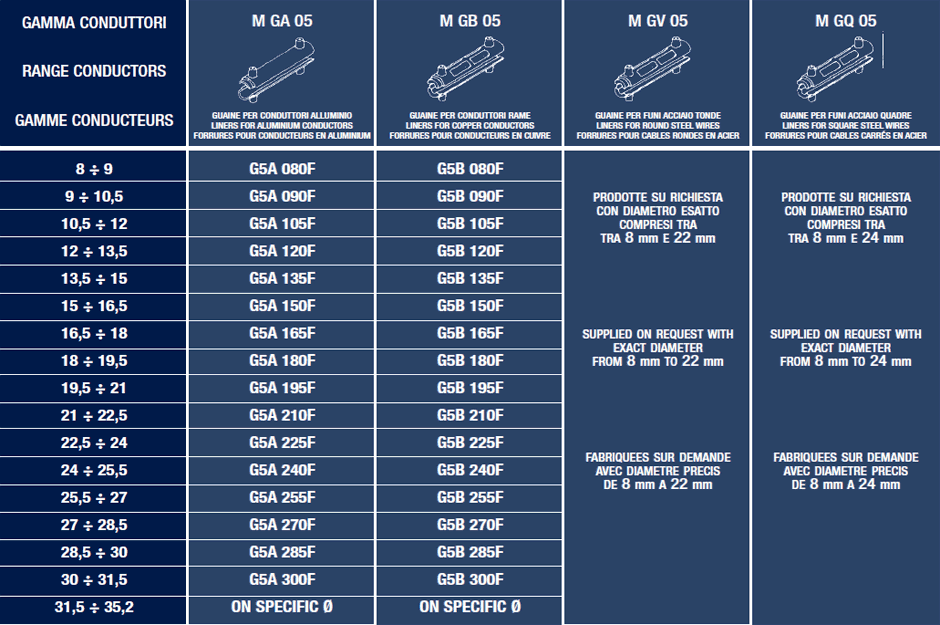

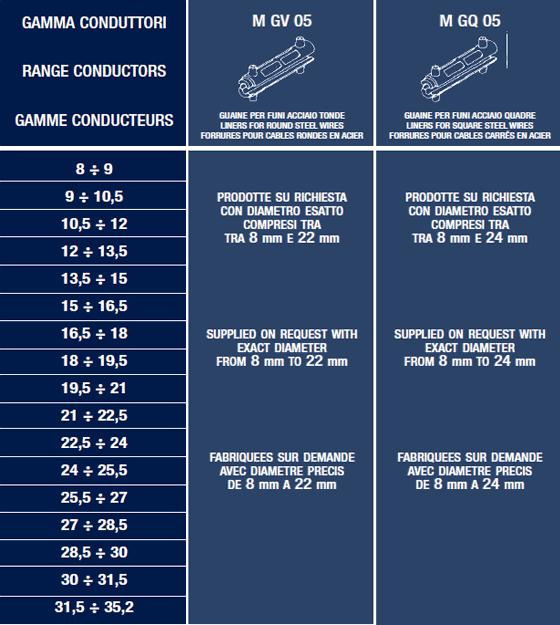

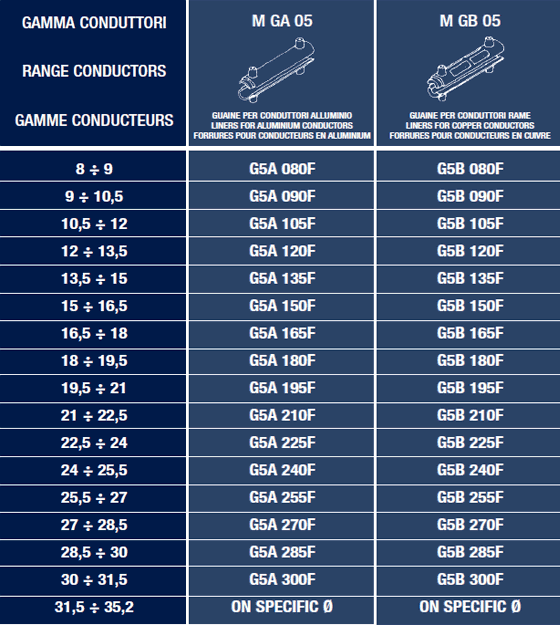

IR 3105 - S liners

The liners are available in aluminium for aluminium or aluminium/steel conductors and bronze for copper conductors, steel anti-twisting rope and steel earth wire.

IR 3105-S liners IR 3105-S liners IR 3105-S liners
